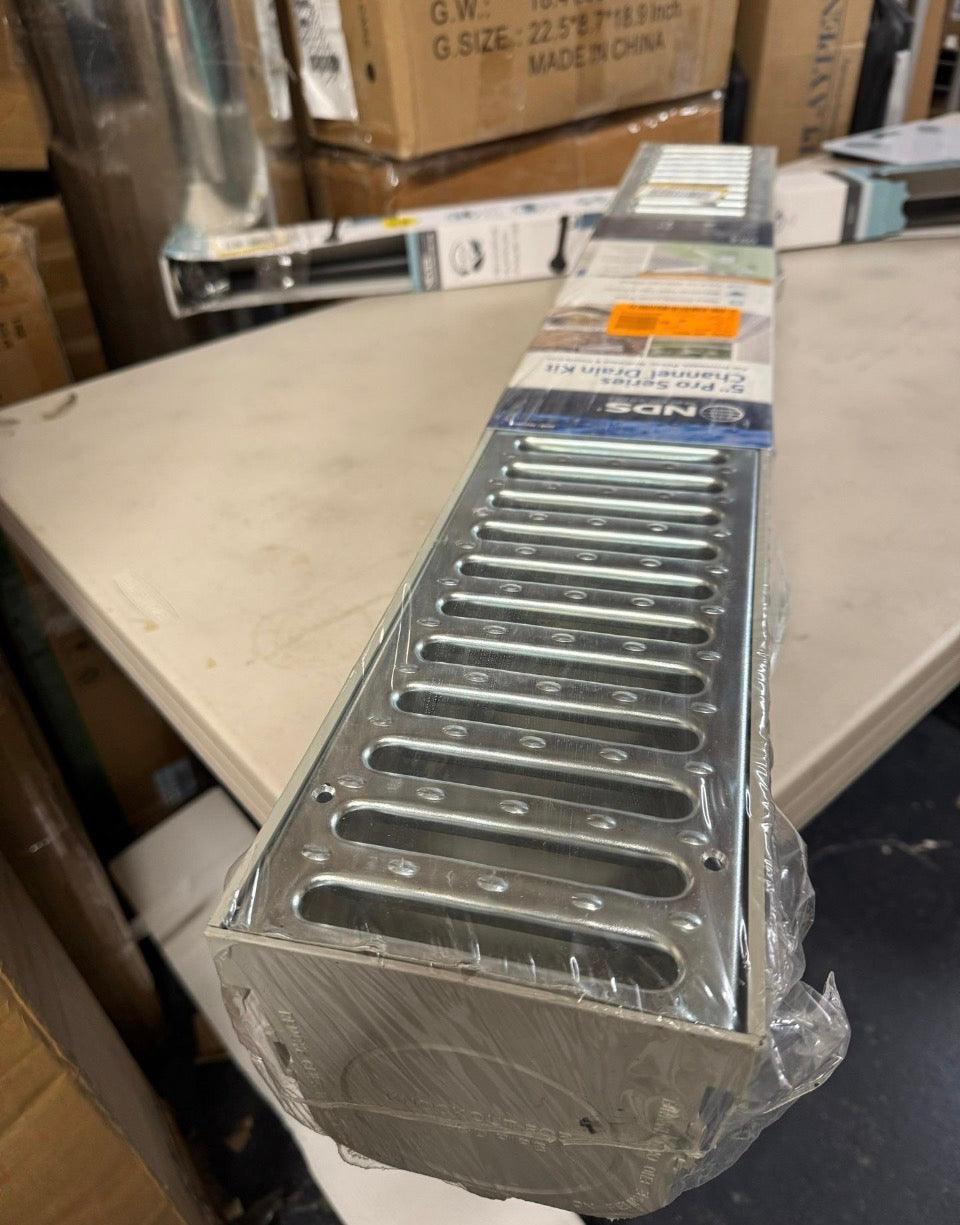

NDS Pro Series 5 in. x 40 in.Channel Drain Kit with Metal Grate

Channel drain kit

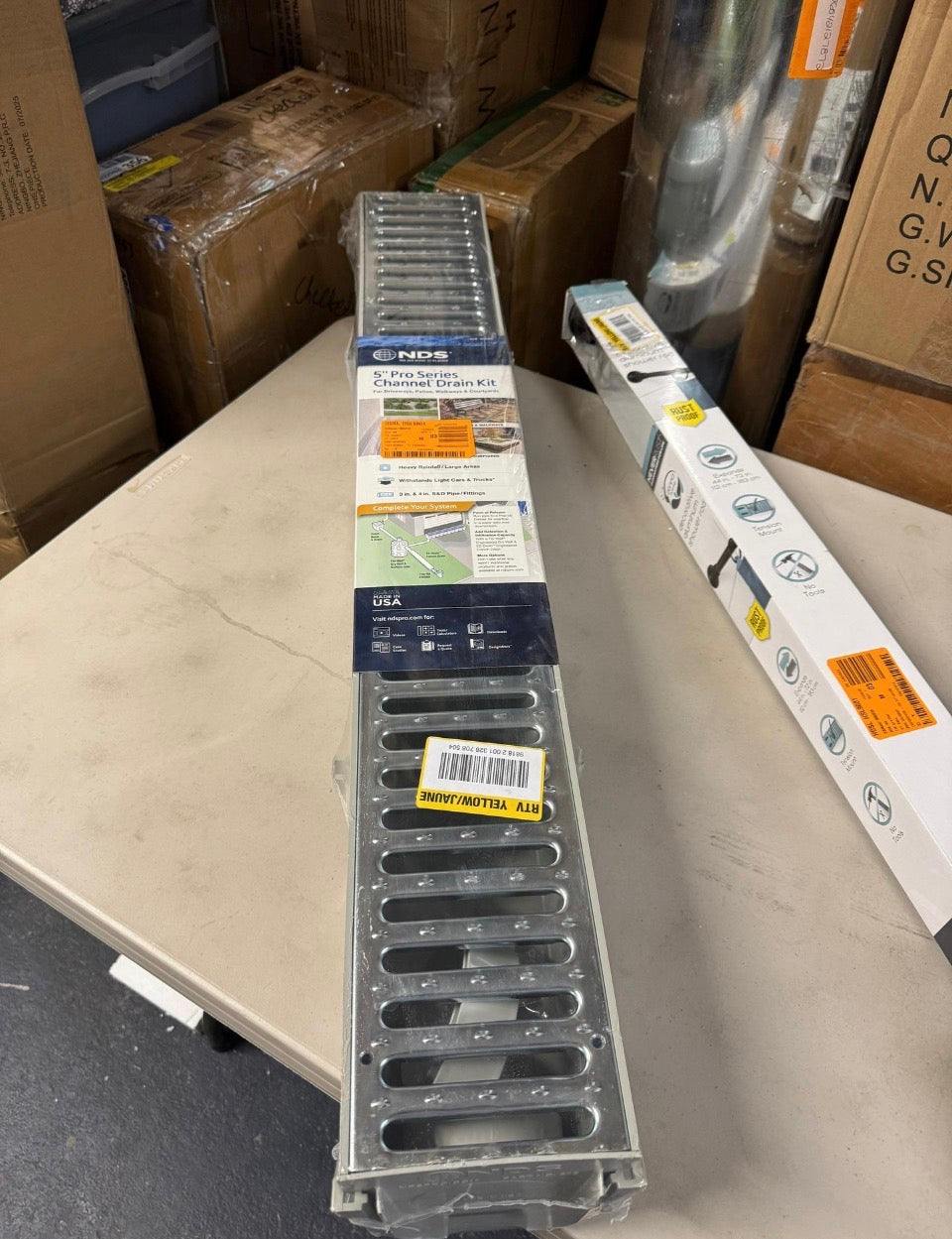

Open box new
Drain excess water flooding hardscapes to prevent costly property damage with the 5 in. Pro Series Channel Drain, Deep Profile, the most durable modular drain system in its class. Captures moderate flows from driveways, patios, courtyards, walkways, & sports facilities, & conveys to drain pipe. Kit includes a 4-3/4 in. deep polypropylene channel, galvanized steel grates, end cap/outlet, & end cap. Channels snap together with interlocking joints. Shorten to 4 in. increments using saw guides. End cap/outlet, integrated bottom outlet, & side knockouts provide 8 outlet options per channel section. Channel drains, also called trench drains, are long, narrow drains used for surface drainage of hardscapes. Channel drains collect and convey water to drain pipes, which carry the water downstream to discharge with a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage, and performance, and are a proven alternative to traditional concrete drains. Find the best channel drain or trench drain system for your needs with the NDS Channel Drain Selector tool at ndspro.com/choose-the-right-channel-drain.html. Founded in 1972, NDS is the leader in stormwater management solutions, the preferred choice of professionals, and the largest supplier of channel drains in North America. Our commitment is to provide proven products, tools, and expert support to help you get the job done right.

Prevent mildew growth, concrete staining, and costly structural damage by capturing and conveying excess surface water to drain pipe for release downstream
The 5 in. Pro Series Channel Drain Kit with Deep Profile Channel is ideal for draining moderate flows from hardscape surfaces such as driveways, concrete and paver patios, courtyards, walkways, and sports facilities
Channel sections connect together with interlocking joints; bottom outlet connects to 3 in. & 4 in. Sewer and Drain Fittings; side outlets to 3 in. Sewer and Drain pipe; end outlet to 3 in. Sewer and Drain Pipe & 4 in. Sewer and Drain Fittings

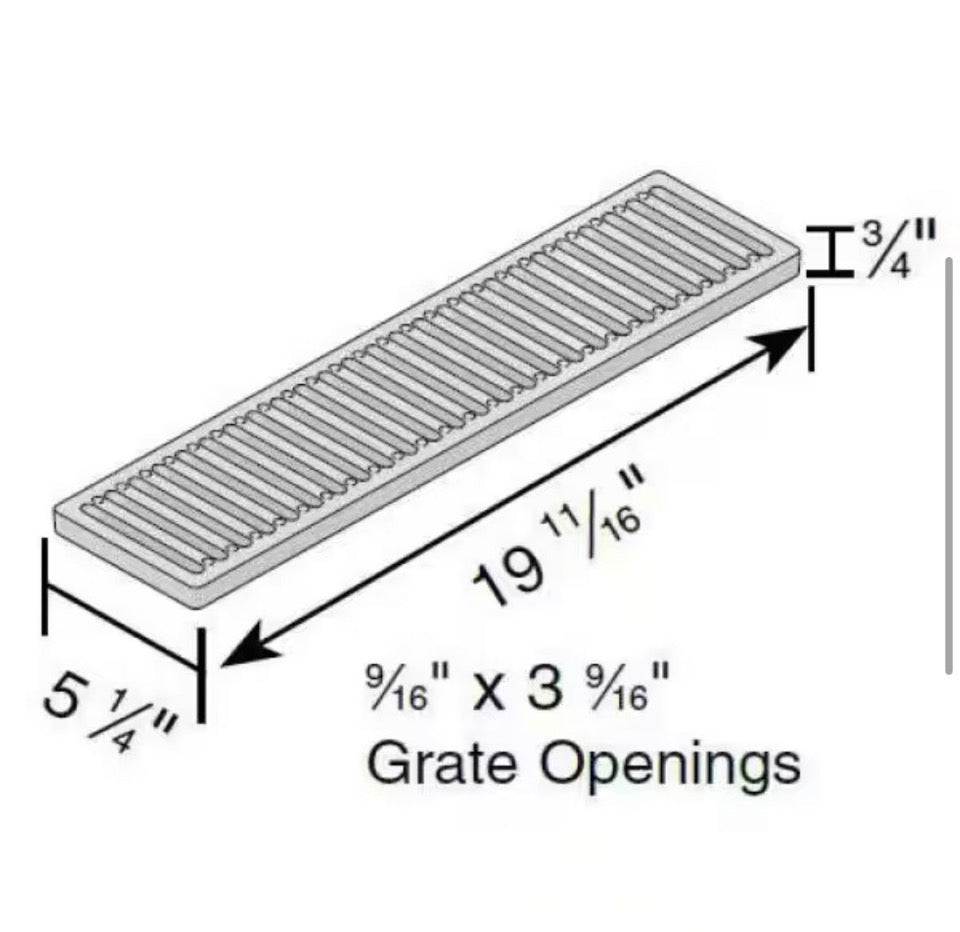

19.0 sq. in. per linear ft. open surface area. 59 GPM per ft. flow rate
Rated for NDS Class B Loads (up to 175 psi) when properly installed-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant

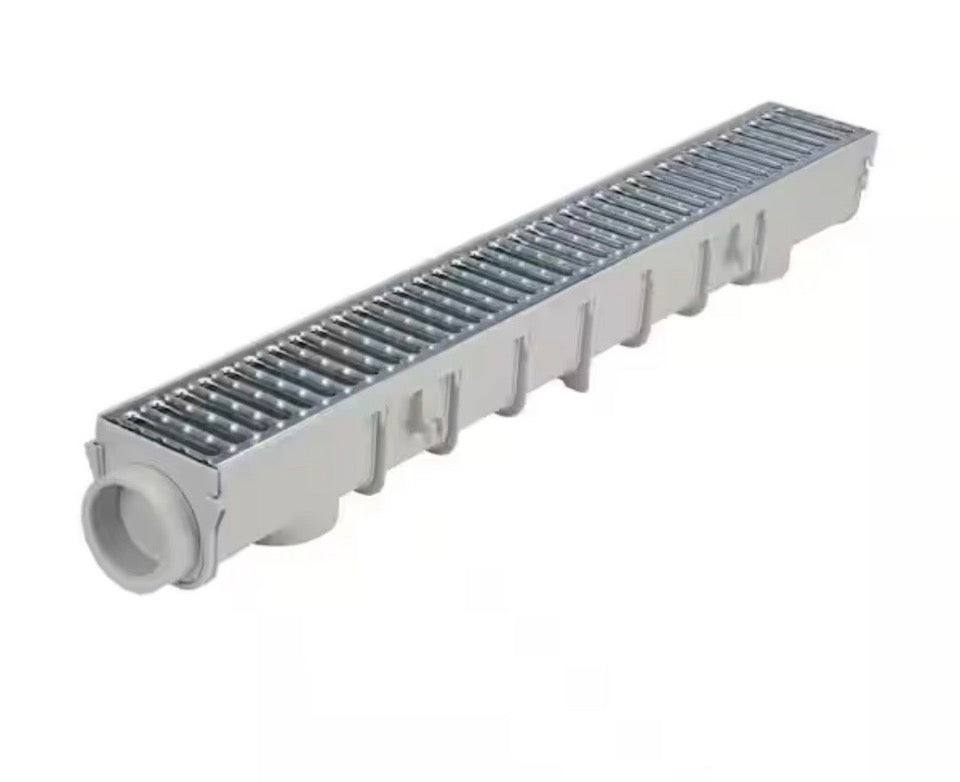

The 5 in. Pro Series Channel Drain is 4-3/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection-no couplings required, easy to cut to size in 4 in. increments with saw guide

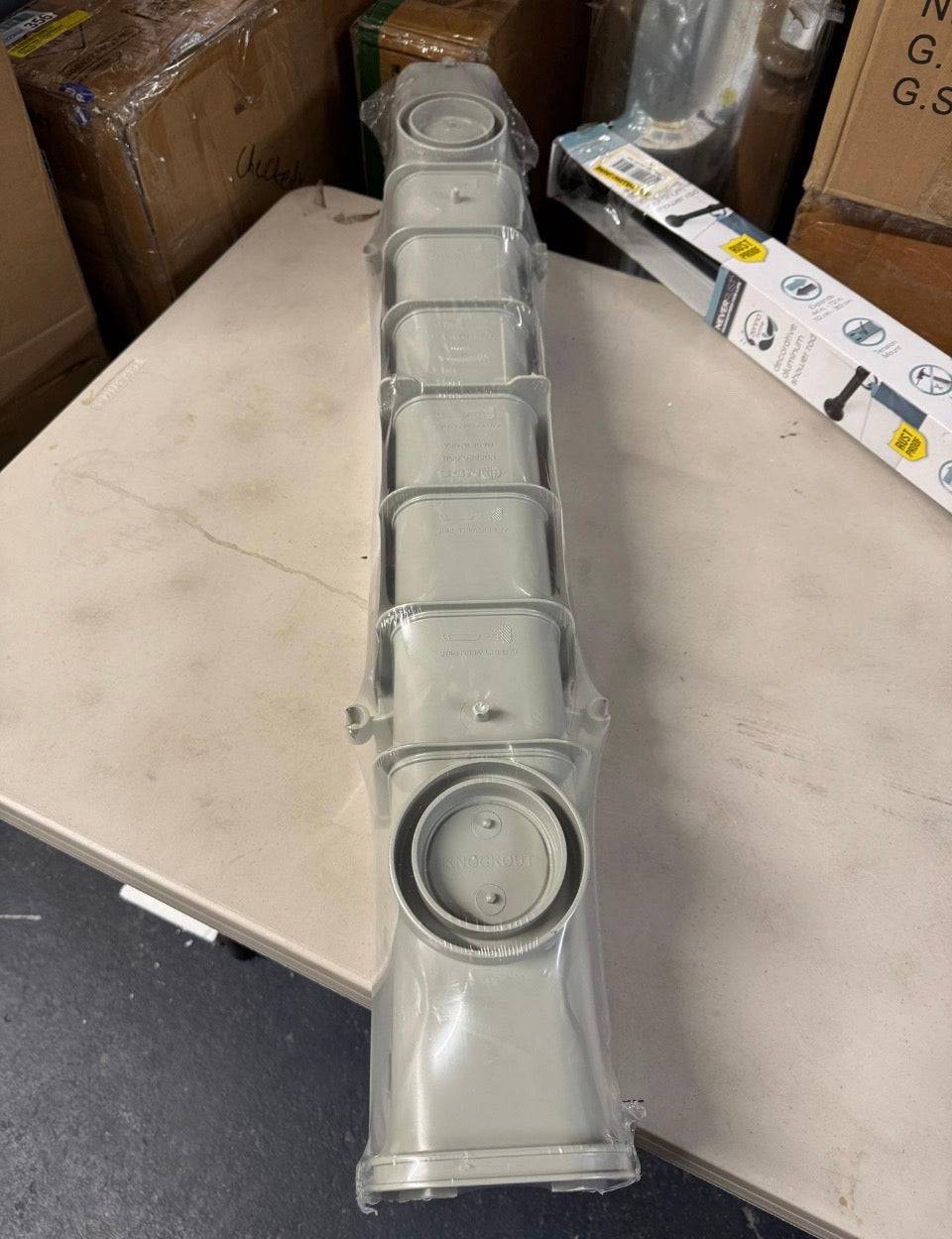

Included end cap/outlet combined with integrated bottom outlet and side-outlet knockouts provide 8 outlet options per channel section
Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier. Thick channel walls and extended side ribs provide increased strength and durability

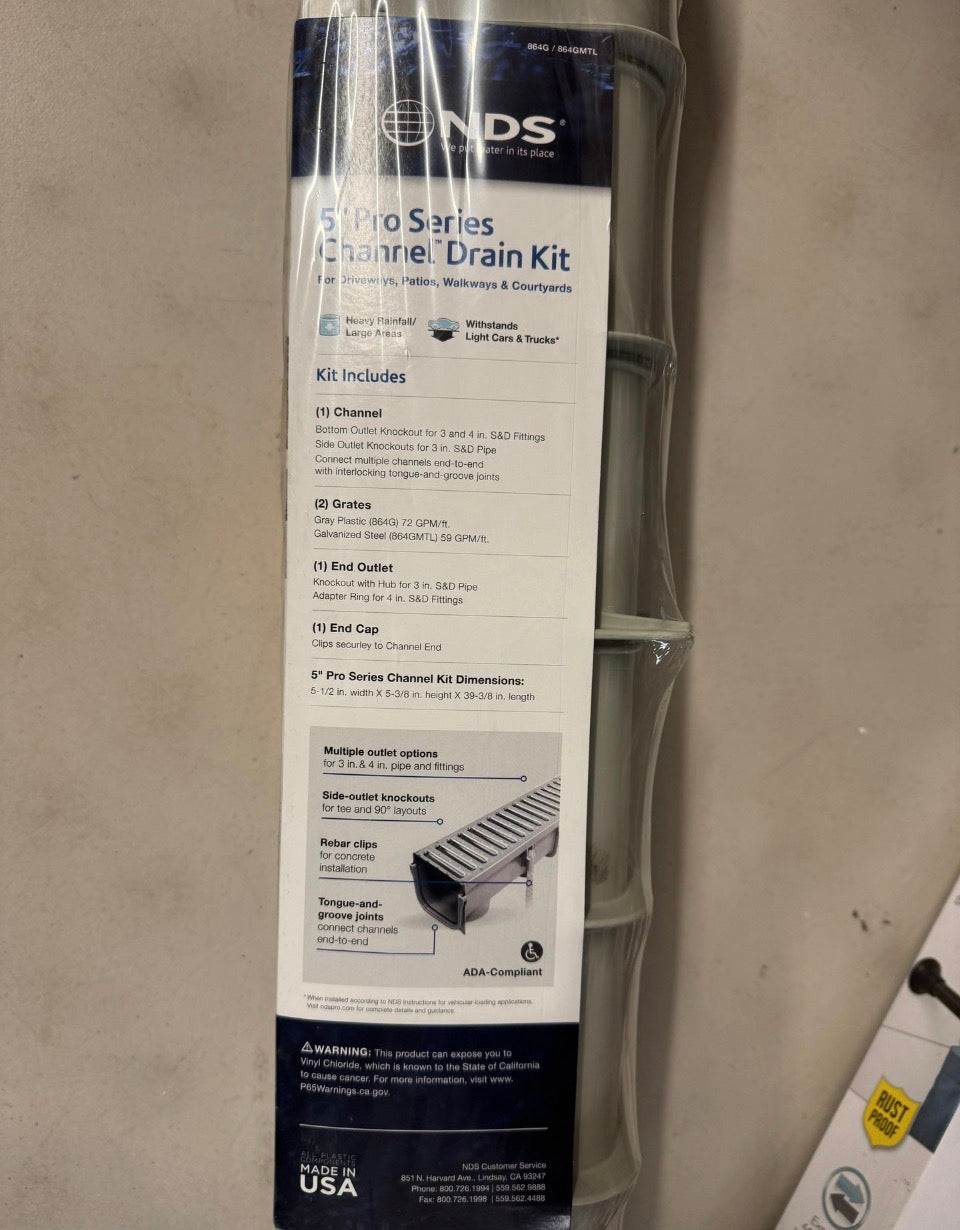

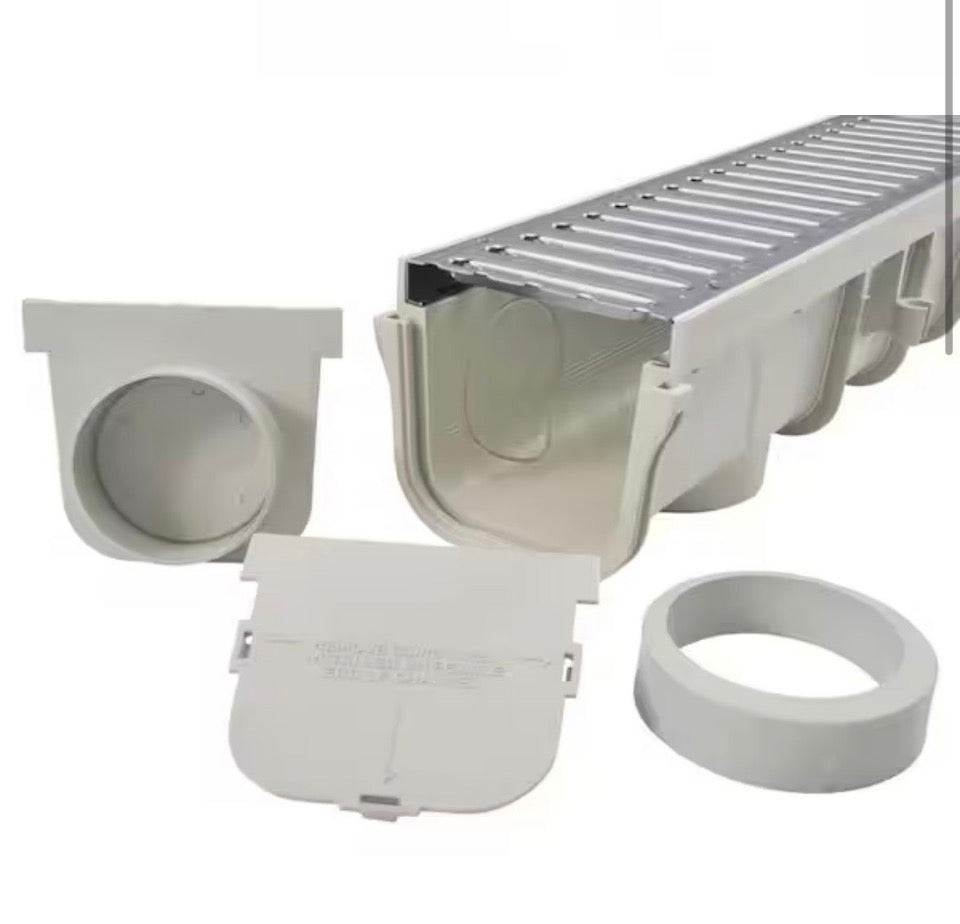

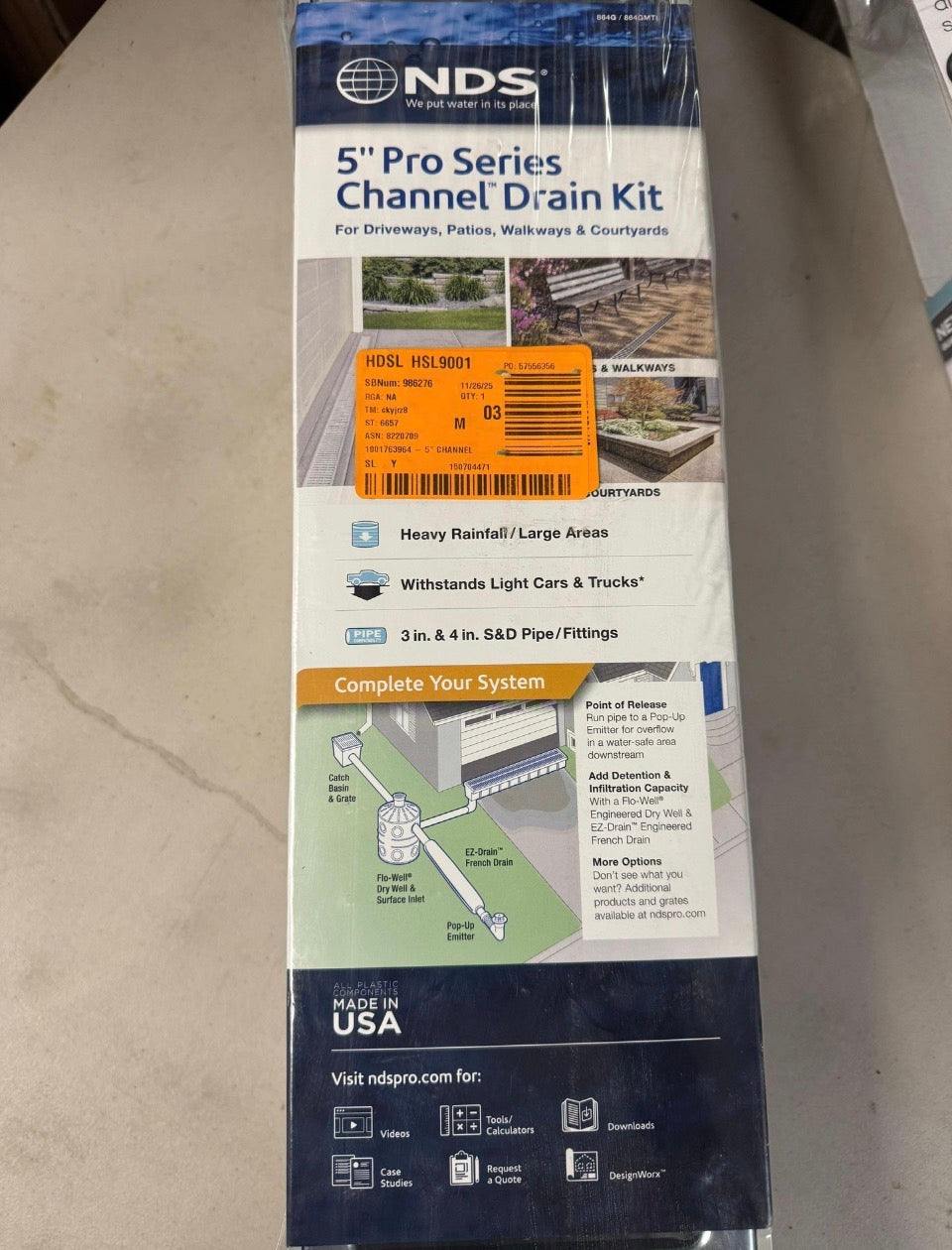

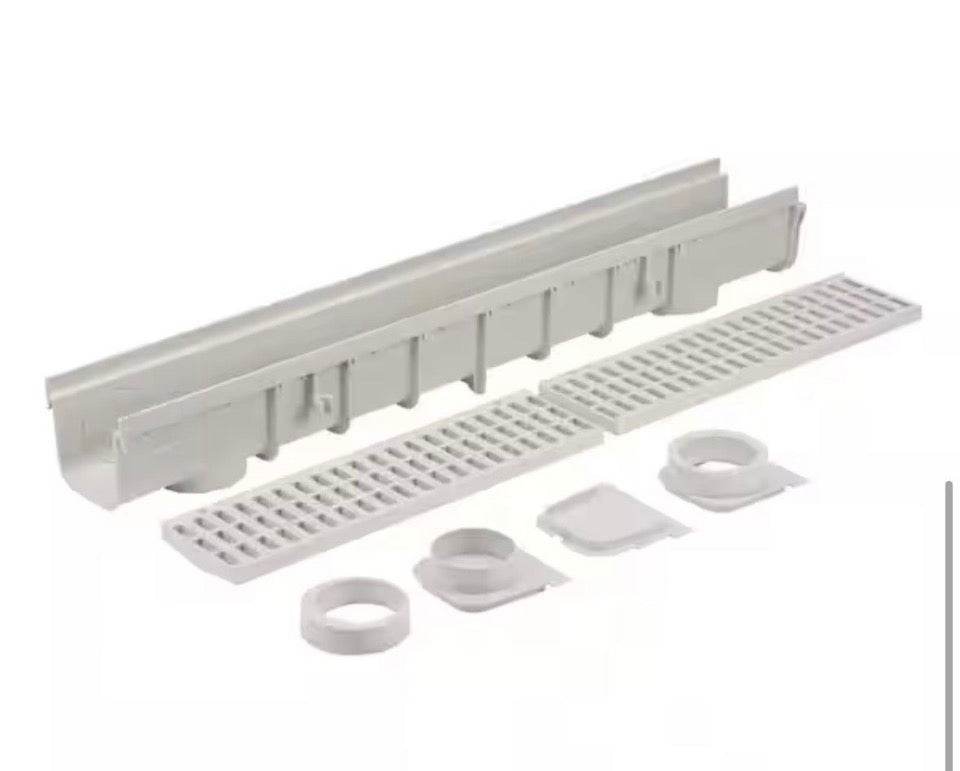

5 in. Pro Series Channel Drain Kit comes with a Deep Profile Channel Drain, Galvanized Steel Channel Grates, End Cap/Outlet, and End Cap
The 5 in. Pro Series Channel Drain, as part of a complete channel drainage system, collects and conveys water to drain pipes for proper release downstream
Modular design connects together for longer runs, can be cut to size as short as 4 in. long for smaller sections
Removable grates make it easy to clean debris from channel for maintenance

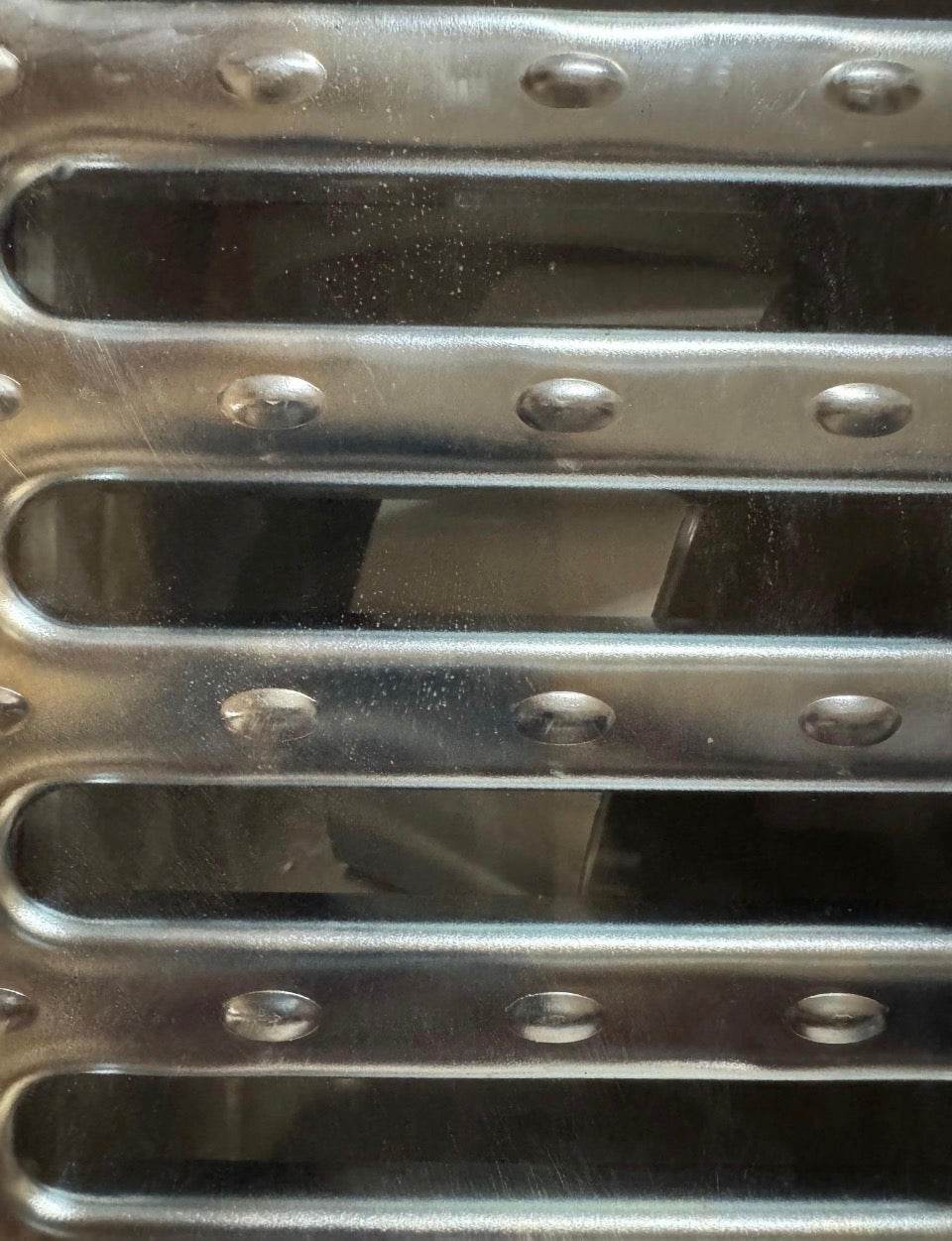

5 in. Pro Series Channel made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grates made of galvanized steel
Create longer runs by connecting additional 5 in. Pro Series Channel Drain(s) and Channel Drain Grates (sold separately)
Use with 5 in. Pro Series Channel Drain Qwik-Turn Deep Radius Couplings to install drainage around areas with curved edges such as patios, fountains, pools, and spas. Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream; use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
